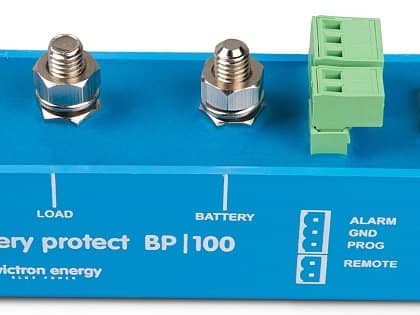

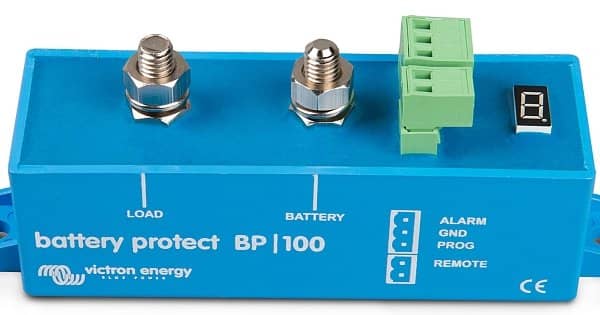

BatteryProtect: It does exactly what is says and more…

Affordable and effective the BatteryProtect range has been further expanded to include two new models; BatteryProtect 48V-100A and BatteryProtect 12/24V 65A.

I wish I’d known about these earlier for my boat as they do far more than just protect. Of course they can be used in any battery application (not just boats) that needs to be protected and isolated. In fact why buy a battery isolation switch at all – when a BatteryProtect can do that and more. Lesson learned as they say.

Key features

LED display making setup/programming easy.
Often used in lithium systems due to low standby current in comparison to a relay.
Lithium system remotely controllable disconnect switch. Note that this no longer uses its internal voltage measurement for disconnecting, as it is now remotely controlled by the BMS.
Ideal for vehicles, solar installations, boats and motorhomes.
Solid state switching for longevity.
Lower energy consumption than closing a relay.
Can act as a battery isolator and be switched remotely.
Use in conjunction with a BMV-700 series battery monitor for audible alarms and monitoring.
And why not use the VictronConnect app & Bluetooth Smart dongle with your BMV or MPPT solar charge controller – making life even easier.

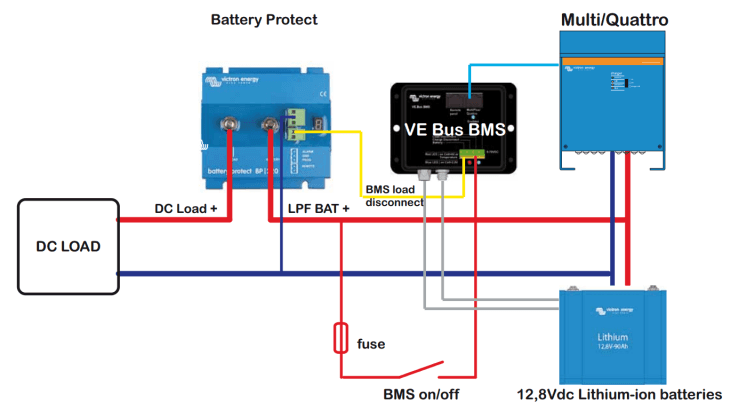

Example schematic

What exactly can BatteryProtect do?

BatteryProtect will disconnect the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left, to crank an engine for example. Here are the features common to all models:

Programming made easy using visual LED – can be set to engage / disengage at several different voltages. The seven segment display will indicate which setting has been chosen.
Special setting for Li-ion batteries – in this mode the Battery Protect can be controlled by the VE.Bus BMS.
Ultra-low current consumption – this is important in case of Li-ion batteries, especially after low voltage shutdown. Please see our Li-ion battery datasheet and the VE.Bus BMS manual for more information.
Over voltage protection – to prevent damage to sensitive loads due to over voltage, the load is disconnected whenever the DC voltage exceeds 64V; 16 V and 32V respectively for 12V and 24V systems.
Ignition proof – no relays but MOSFET switches, and therefore no sparks.
Delayed alarm output – the alarm output is activated if the battery voltage drops below the preset disconnect level for more than 12 seconds. Starting the engine will therefore not activate the alarm. The alarm output is a short circuit proof open collector output to the negative (minus) rail, max. current 50mA. The alarm output is typically used to activate a buzzer, LED or relay.
Delayed load disconnect and delayed reconnect – the load will be disconnected 90 seconds after the alarm has been activated. If the battery voltage increases again to the connect threshold within this time period (after the engine has been started for example), the load will not be disconnected. The load will be reconnected 30 seconds after the battery voltage has increased to more than the preset reconnect voltage.

Model Range

12/24V models

In addition to the features above (if choosing a 12/24V model) these have automatic detection of 12 or 24 V system voltages.

BatteryProtect 12/24V 65A
BatteryProtect 12/24V-100A
BatteryProtect 12/24V-220A

48V model

BatteryProtect 48V-100A

Conclusion

An affordable, multi function product. Fit to new systems or upgrade your old ones. Learn more at: https://www.victronenergy.com/battery_protect/battery-protect

John Rushworth

Articole de blog similare

cerbo-gx-now-on-e-order-and-ready-for-pre-order-featured

John Rushworth • 06 February 2020

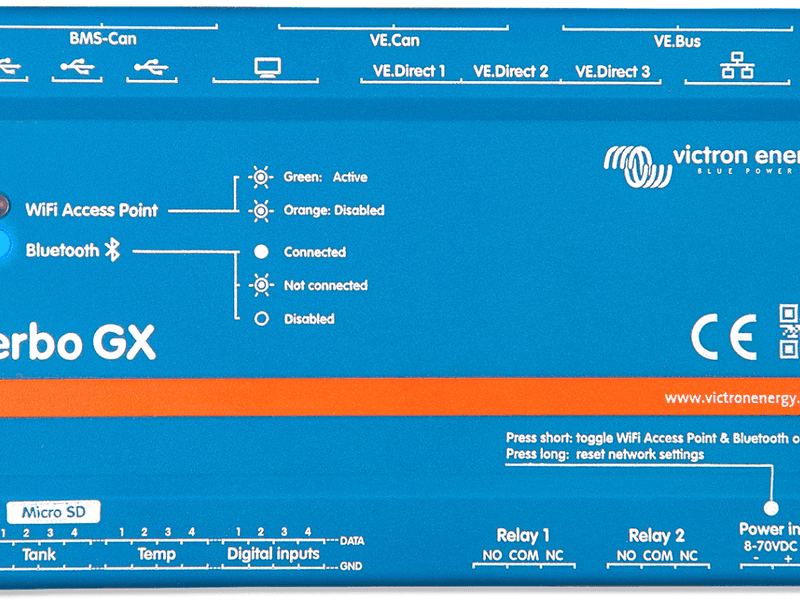

Cerbo GX & GX Touch 50

The new Cerbo GX, along with the optional GX Touch 50 display, were announced and demonstrated at METS, November 2019 . Personally I’m a great fan of GX devices, the Color Control GX, Venus GX and more – all being a part of the Victron GX product range . Detailed introductory blogpost by Panbo However, my 6 years personal experience is with the Color Control GX model – so I’d be doing you the reader a disservice by reviewing the Cerbo GX. Also, as I blog for Victron, I admit to a natural and faithful bias. It seems only right and proper then to let an independent reviewer give you their take on this exciting new product. What I can say though – is that going by the review on Panbo, the product will be in great demand. For a detailed introduction, I recommend reading the Panbo blog post by Ben Ellison: Victron Cerbo GX, good AC/DC power monitoring gets better . Introductory video GX Touch 50 display The GX Touch 50 is the optional display for the Cerbo GX. Its water proof, thin, and easy to mount. There is a cable coming out on the back with two plugs on it: the HDMI goes into the HDMI port on the Cerbo, and the USB (used to power the display) goes into one of the USB sockets. For all details, including dimensions and the manual, see the GX Touch 50 product page . Optional DIN rail adapter The optional DIN rail adapters are to easily mount the Cerbo GX on a DIN-Rail. Dimensions and details are available on its page on our website . Conclusion When you consider just how far GX devices have come in the last 6 years ( just take a look back to 2014 ), then the Cerbo GX is to my mind the ultimate GX turbo charged device for connectivity. Learn more at the Cerbo GX product page . John Rushworth

Justin Tyers • 04 May 2022

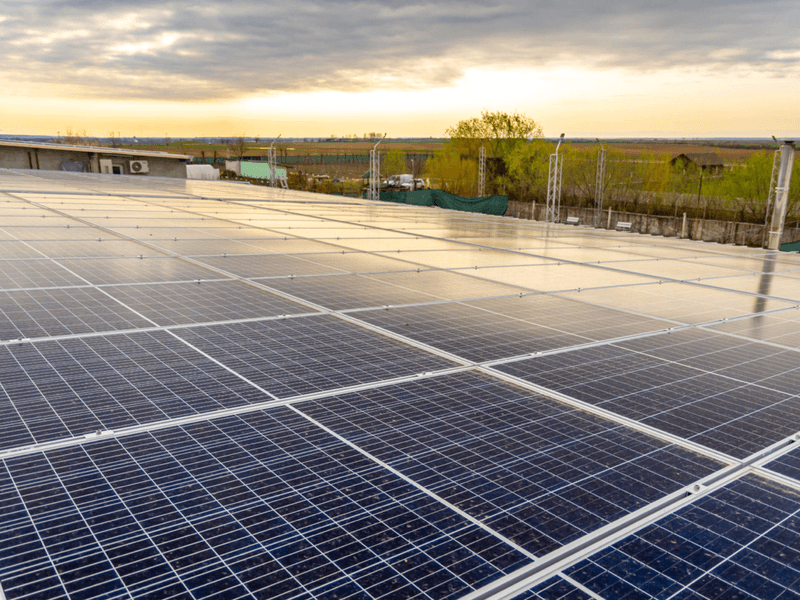

Intersolar Europe 2022 – Preview
